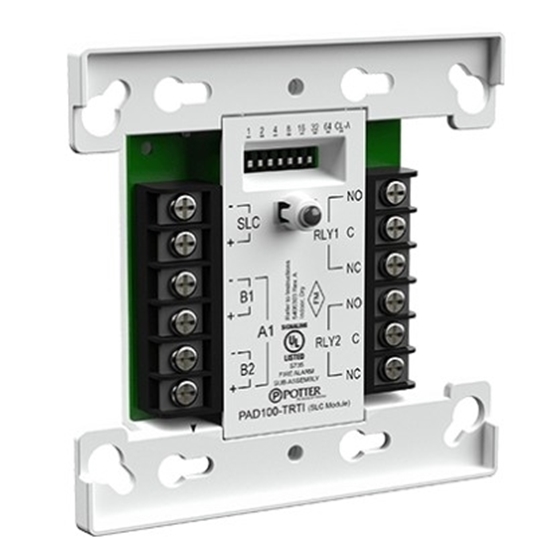

The PAD100-TRTI from Potter is a addressable module that features two Form C relay contacts and dual-input monitoring for two Class B or one Class A circuit. Optimized for efficiency, it uses a single SLC loop address to monitor devices like sprinkler waterflow and valve tamper switches in close proximity. This high-performance module is compatible with Potter’s IPA and AFC/ARC series panels and easily mounts in standard 4-inch square or double-gang electrical boxes.
Features
- Single module with dual contact monitoring inputs
- Two (2) Class B or one (1) Class A monitoring inputs
- Two (2) Form C relay contacts
- SLC Class A, Class X & Class B
- Mounts in a standard 4” or double gang box
- Wiring terminals accessible when mounted in box
- All wiring terminals accept 22 to 12 AWG
