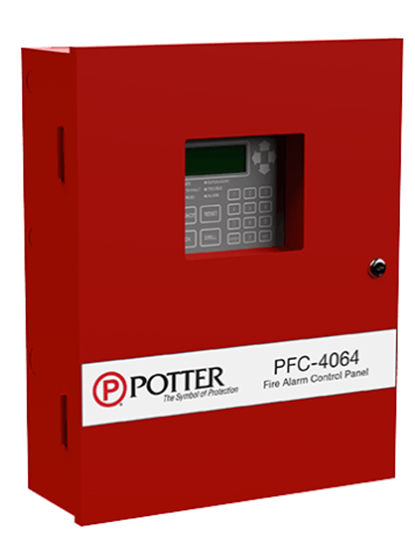

The PFC-4064 from Potter is a conventional fire panel. The panel isa listed and approved microprocessor based conventional fire panel and complies with UL-864, NFPA-70, and NFPA-72. It has six inputs and four 24VDC, 3.0 Amp Notification Appliance Circuits (NAC) with strobe synchronization. The 5.0 Amp power supply provides power to meet any jurisdictions requirements and will charge up to two 55 amp/hour batteries. In addition, the panel has the Potter P-Link for connection to system accessories. The panel also has a 1.0 Amp auxiliary power output for controlling ancillary fire alarm functions.The PFC-4064 panel is in a metal cabinet with a key lock and lexan window for viewing the system status and the cabinet houses up to two (2) 7 AH or two (2) 12 AH batteries. The display is an eighty (80) character LCD with system status LEDs. The system status is clearly displayed and the panel includes a history buffer for past events. The keypad allows navigation into the system menu, limited programming and system control. The panel will support up to thirty-one (31) system accessories.
Features
- 6 Programmable Initiating Device Circuits
- System is expandable to 192 input circuits using the IDC-6 expansion module
- 5.0 Amp Power Supply
- 4 Notification Circuit rated at 3.0 Amps
- Strobe Synchronization for Gentex, AMSECO, System Sensor and Cooper/Wheelock
- One programmable auxiliary output rated at 1.0 A
- 4 x 20 LCD display with system LEDs for clear system status
- P-Link RS-485 bus supports 31 system accessories
- Built-in Ethernet Connection with listed IP Communicator
- Ability to E-mail system status, reports and system configuration
- Service Reminder E-mails
