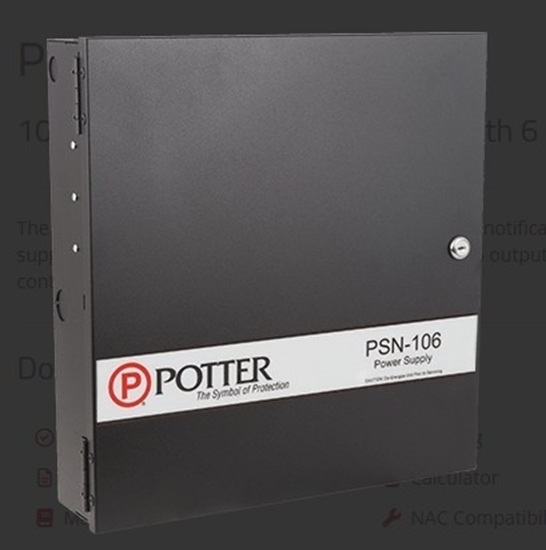

The PSN-106B from Potter is a power supply and notification line extender designed to provide 10 Amps of power across six Notification Appliance Circuits. This black-enclosed unit features a hinged door for easy access and extra venting to ensure components remain cool during operation. It is commonly used to expand the power capabilities of fire alarm systems while maintaining synchronized signaling across all circuits.
Features
- PSN-106 has 10 amps regulated with 6 outputs
- May be configured as up to three class “A” Style “Z” notification circuits
- Two Trouble relays (5A at 30VDC) General System Trouble (programmable for AC delay) Low AC Trouble with optional delay settings
- Diagnostic LED’s Status LED’s for Active NAC and NAC Trouble conditions
- Quadrasync feature synchronizes horns/strobes from AMSECO, Gentex, Cooper-Wheelock and System Sensor
- May be connected to any manufacturers UL864 listed FACP/ Unit for activation and supervision • Configurable output circuits (DIP switch sets options for each circuit)
- Reference EOL allows 2K – 27K EOL value to be used
- Pass Thru mode allows the outputs to match the input signal from FACP
